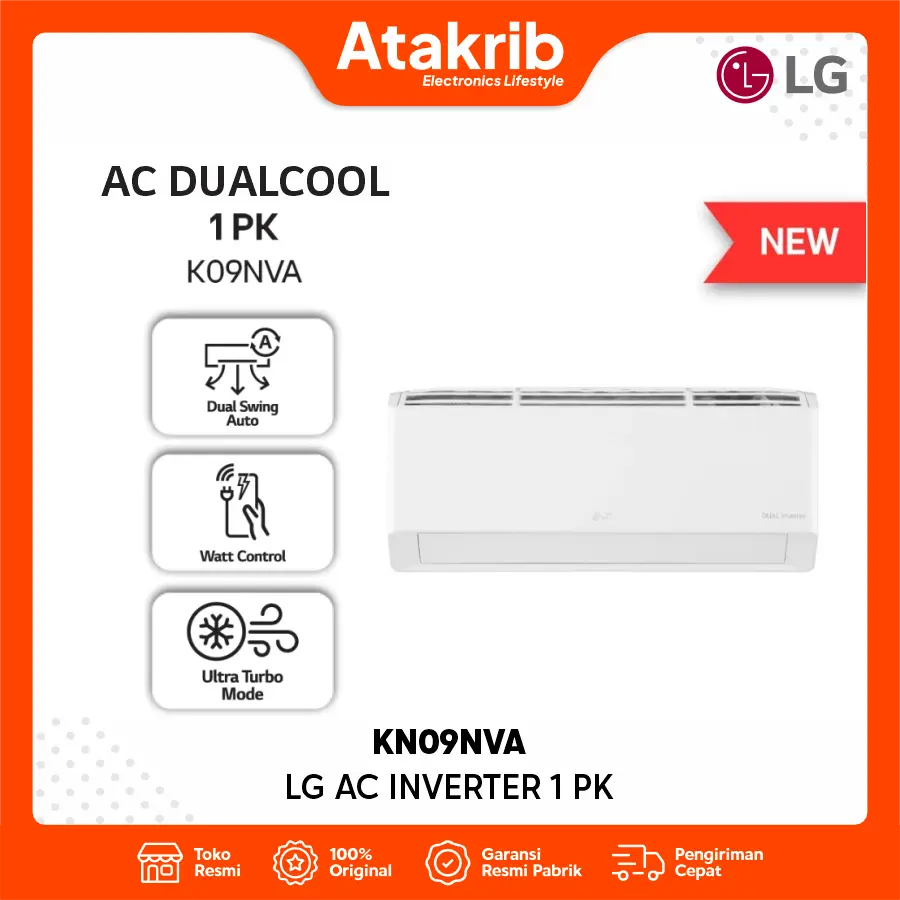

LG AC INVERTER 1 PK KN09NVA

HARGA AC UNIT ONLY (Indoor dan Outdoor)

Harga AC Belum Termasuk Biaya Pemasangan dan Accecories.

Capacity

• Cooling Capacity : 8,800 BTU/h

Electrical

• Rated Power Input : 930 W

• Running Current : 6.0 A

• Power Supply : 1 Phase, 220V, 50Hz

• Circuit Breaker : 15 A

• Energy Efficiency : 4 Star

• CSPF : 4.22

Indoor Unit

Air Flow Rate (CMM)

• Power : 7.9

• High : 6.8

• Medium : 5.2

• Low : 4.3

• Silent : 3.9

Fan Motor Speed (RPM)

• 1500 / 1300 / 1170 / 1040 / 940 / 850 / 780

Sound Pressure Level

• High : 41 dB(A)

• Medium : 35 dB(A)

• Low : 31 dB(A)

• Silent : 28 dB(A)

Dimensions (W × H × D)

• Net : 682 × 299 × 185 mm

• Shipping : 749 × 375 × 235 mm

Weight

• Net : 6.7 kg

• Shipping : 7.6 kg

Color

• Munsell 7.5BG10/2 (RAL 9016)

________________________________________

Outdoor Unit

Air Flow Rate

• 21 CMM

Fan Motor Speed

• 900 RPM

Sound Pressure Level

• 51 dB(A)

Dimensions (W × H × D)

• Net : 593 × 453 × 230 mm

• Shipping : 745 × 515 × 323 mm

Weight

• Net : 16.6 kg

• Shipping : 18.0 kg

Color

• Munsell 9.54Y 8.34/1.31 (RAL 9001)

________________________________________

Operation Range

• Cooling : 21 – 48°C

Piping

Pipe Size

• Liquid : Φ6.35 (1/4")

• Gas : Φ9.52 (3/8")

Pipe Length

• Minimum : 3 m

• Standard : 7.5 m

• Maximum : 15 m

Max Elevation Difference

• 5 m

Connection Method

• Flared / Flared

Drain Hose Size

• OD : 21.5 mm

• ID : 16.0 mm

________________________________________

Refrigerant

• Type : R32

• Pre Charge : 0.35 kg

• Additional Charge : 15 g/m

• Global Warming Potential : 675

• t-CO2 eq : 0.209

________________________________________

Compressor

• Model : DXT075MAA

• Type : Twin Rotary

• Motor : BLDC

• Oil Type : POE (RB68A)

• Oil Charge : 180 cc

• Manufacturer : LG Electronics (China)

________________________________________

Fan

• Indoor : Cross Flow Fan

• Outdoor : Propeller Fan

________________________________________

Motor

• Indoor : Welling BLDC 30W

• Outdoor : Welling AC 15W

• Outdoor Insulation : Class E

• Outdoor Protection : IPX4

________________________________________

Heat Exchanger

Indoor

• Tube / Fin : Cu / AL

• Size : (Φ5 × 2 × 15 × 20 × 477.5mm) × 1

• Fin Type : Slit

• Corrosion Protection : PCM

Outdoor

• Tube / Fin : Cu / AL

• Size : (Φ5 × 1.5 × 21(20) × 21 × (350+586)) × 1

• Fin Type : Slit

• Corrosion Protection : Gold Fin

________________________________________

Air Flow

• Air Supply Outlet: 1

• Airflow Direction Control (Left & Right): Dual Swing

• Airflow Direction Control (Up & Down): 6 Steps

• Auto Swing (Left & Right): Dual Swing Auto

• Auto Swing (Up & Down): Yes

• Fan Speed Steps (Fan / Cool): 6 / 6

• Natural Wind (Auto Wind): No

• Jet Cool / Jet Heat (Power Wind): Yes / No

• Comfort Air: Yes

________________________________________

Air Purifying

• Prefilter (Washable / Anti-Bacteria): Yes

• Deodorizing Filter: No

• Micro Dust Filter: No

• Allergy Filter: No

• Plasma Air Purifier (Ionizer): No

________________________________________

Installation

• Drain Pump: No

________________________________________

Reliability

• Self Diagnosis: Yes

• Hot Start: No

• De-ice Control (Defrost): No

• Dry (Dehumidification) Operation: Yes

________________________________________

Convenience

• Auto Operation (Artificial Intelligence): Yes

• Auto Cleaning (Coil Dry): Yes

• Auto Restart Operation: Yes

• Sleep Mode: 7 Hours

• Timer: 24 Hour On/Off

• Indoor Unit Display Type: 88 Hidden Display

• Indoor Unit Display Light: On / Off

• Cleaning Mode: Yes

• Smart Diagnosis: No

• Voice Control: No

• Outdoor Silent Mode: No

• Mosquito Away: No

________________________________________

Energy Saving

• Energy Saving Mode: Yes

• Energy Control: Watt Control

• Gen Mode: No

________________________________________

Individual Control

• Wireless Remote Controller: AKB30086004

• Temperature Setting (Cooling): 16 – 30°C

• Heating Mode: Not Available

________________________________________

CAC Network Function

• Network Solution (LGAP): Yes

• General Central Controller: No

• Dry Contact: No

• Power Distribution Indicator: No

________________________________________

Special Function Kit

• Wi-Fi: No

• Water Level Sensor Connection: No

• Wind Baffle Kit: No

• Sump Heater: No

• Sheath Heater: No

• Crank Case Heater: No

• Smart Inverter Monitoring System (SIMs): No

________________________________________

Others

• Mode Lock: No

• DRED (Demand Response Enabling Device): No
